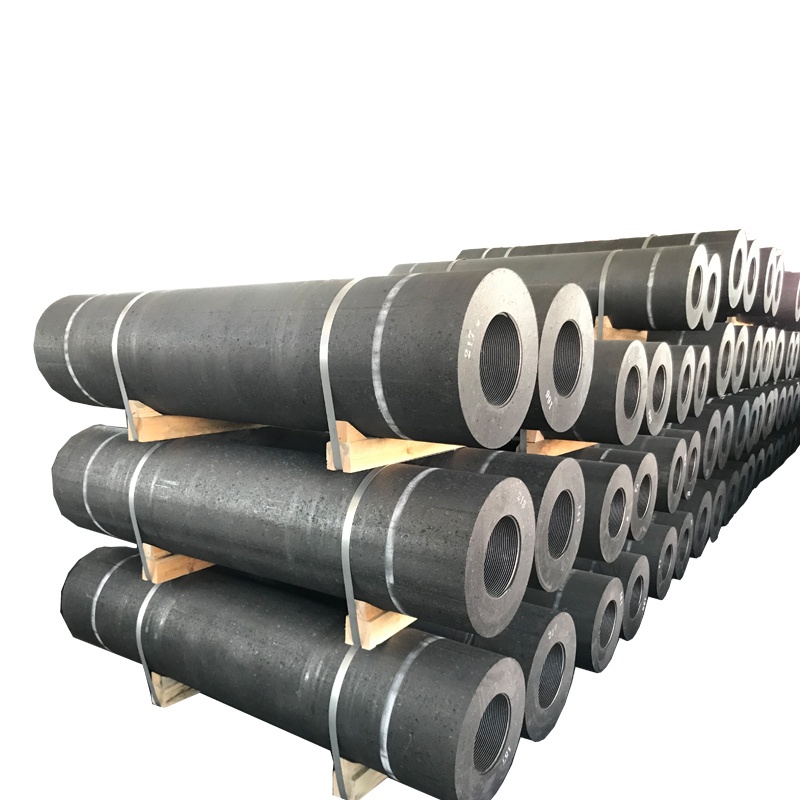

Graphite electrode is one of the most important metallurgical products, mainly used as conductive material in electric arc furnace metallurgy production. UHP graphite electrodes are mainly used for steelmaking high-power and ultra-high power electric furnaces.

Graphite electrode Dimension
● Nominal Diameter: 500mm (min 505 mm, max 511 mm)
● Nominal Length: 2400 mm (+100mm,-100mm)
● Nipple:  269 T4L
● Nipple Diameter: 269.88 mm
● Nipple Length: 457.2 mm
● Typical weight of electrodes: 860kg
● Application: steel melt plant, ladle furnace
● Current Carrying Capacity, (kA): 43-63

UHP500mm Graphite Electrode Physical and Chemical Parameters

Advantage
● Withstand large currents, high discharge rate
● Good dimension stability, not easy to deform
● Resistant to cracking & spalling
● High resistance to oxidation and thermal shock
● High mechanical strength, low electrical resistance
● High machining accuracy, good surface finishing
