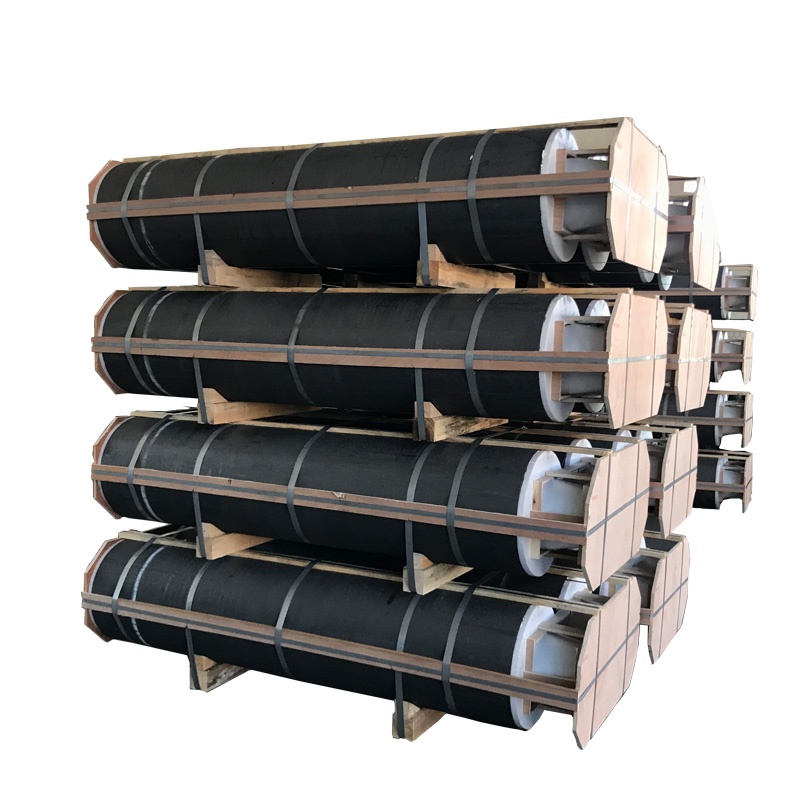

20×96 UHP Grade Graphite Electrodes With 10 5/8×18 Pitch-filled Connecting Pins

Graphite electrode is one of the most important metallurgical products, mainly used as conductive material in electric arc furnace metallurgy production. UHP graphite electrodes are mainly used for steelmaking high-power and ultra-high power electric furnaces.

Graphite electrode Dimension
● Nominal Diameter: 500mm (min 505 mm, max 511 mm)
● Nominal Length: 2400 mm (+100mm,-100mm)
● Nipple:  269 T4L
● Nipple Diameter: 269.88 mm
● Nipple Length: 457.2 mm
● Typical weight of electrodes: 860kg
● Application: steel melt plant, ladle furnace
● Current Carrying Capacity, (kA): 43-63

UHP500mm Graphite Electrode Physical and Chemical Parameters

Advantage
● Withstand large currents, high discharge rate
● Good dimension stability, not easy to deform
● Resistant to cracking & spalling
● High resistance to oxidation and thermal shock
● High mechanical strength, low electrical resistance
● High machining accuracy, good surface finishing
